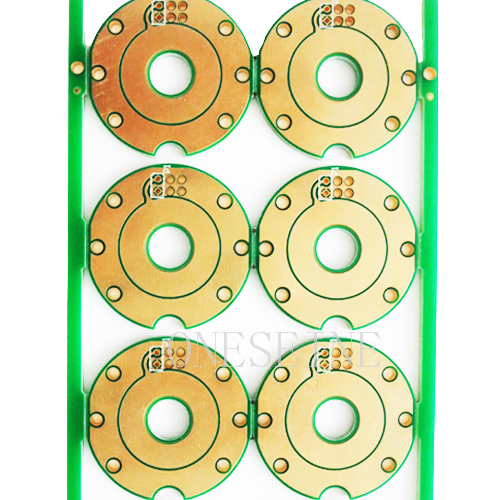

Aluminum PCB board Maker LED Metal Core PCB Manufacturer

Aluminum PCB board Maker LED Metal Core PCB Manufacturer

Quick Details

Place of Origin:Guangdong, China (Mainland)

Brand Name:ONE

Base Material:Aluminum

Copper Thickness:1oz

Board Thickness:1.6mm

Min. Hole Size:0.10mm

Min. Line Width:3mi

Min. Line Spacing:0.1um(3mil)

Surface Finishing:OSP

Tolerance of Impedence Control:+/-5%

Board thickness tolerance:+/-10%

MOQ:1PCS

OEM/ODM:T-SOAR One-stop Service

Hole tolerance:PTH: +/-3mil NPTH: +/-2mil

Certification:ISO-9001,ISO-10041,UL, ROHS

PCB standard:IPC-A-610 D

Service:PCB&PCBA

Name:Aluminum pcb board maker,aluminum led pcb

Material:FR4 CEM1 CEM3 Hight TG

ONE PCB capability

ITEM	Capability
Layers	1--28
Copper thickness	1--6OZ
Base material	FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06, Rogers, Taconic,Argon,Nalco,Isola and so on
Finished surface	conventional hasl, lead free hasl, immersion gold, immersion tin, immersion silver, hard gold, OSP...
Soldermask	green, black, yellow, white, blue, red......
Finished board thickness	0.2-7.0mm
Board thickness tolerance	Board thickness≤1.0mm: +/-0.1mm 1<Board thickness≤2.0mm: +/-10% Board thickness>2.0mm: +/-8%

Delivery time
