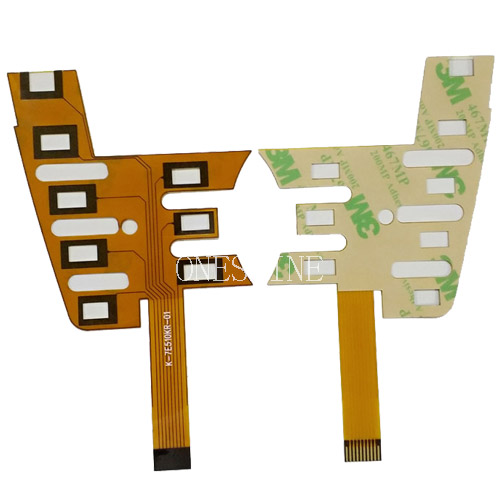

FPC single layer PCB board with 3M sticker

FPC single layer PCB board with 3M sticker

Product category: FPC single panel

Basic parameters:

Application: car navigation

Type: single-sided FPC flexible circuit board

Size: 68.2 * 115mm

Tolerance: ± 0.03mm

Plate thickness: 0.13mm

PI reinforcement: 0.225mm

Surface treatment: sinking gold 1 mile

 NOTE1:

Two different 3M\TESA (Tesa8853) should be sticked to the specified two areas. (on BOTTOM)

-Part1 and Part2 are two separate sticker

-3M\TESA (Tesa8853) should be sticked to the specified out of square area in Part1
