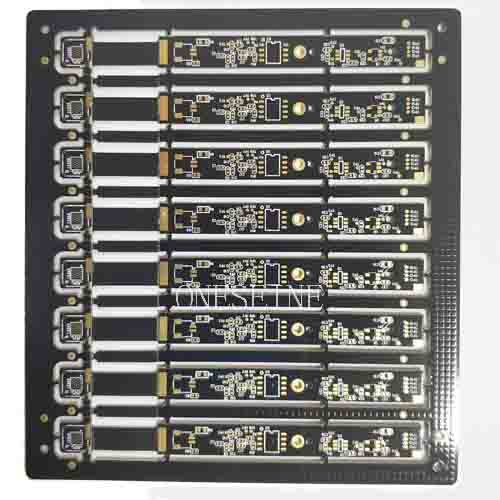

12 Layer Rigid and flexible combination PCB board

12 Layer Rigid and flexible combination PCB board



Product category: soft and hard combination board



Basic parameters: type: 12-layer soft and hard combination plate (buried blind hole plate)



Specification and size: 95 * 151mm



Copper thickness: 18um



Plate thickness: PCB=1.0mm ± 0.1mm/FPC=0.18mm ± 0.03mm



Hole size: through hole 0.2mm, blind hole 0.1mm, buried hole 0.1mm



Surface treatment: immersion gold 2 miles



Soldering resistance: black ink, white silkscreen
