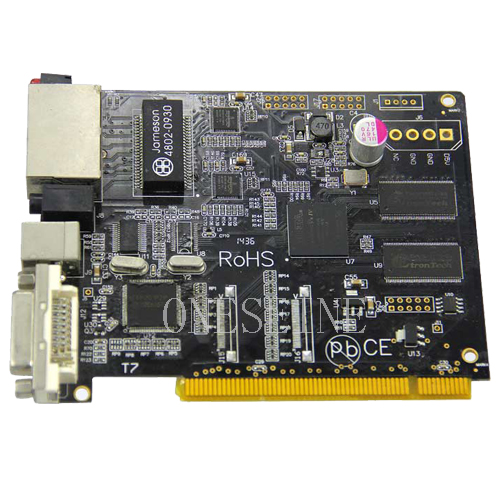

OEM One Stop Electronic SMT / DIP PCBA Assembly Control Circuit Boards

OEM One Stop Electronic SMT / DIP PCBA Assembly Control Circuit Boards

General information:

Layer:2

Material:Fr4

Board thickness:1.0mm

Copper weight:1OZ

Solder mask:Green

White silkscreen:White

Min line:5mil

Min hole:0.3mm

Name:SMT / DIP PCBA Assembly Control Circuit Boards

Application:Computer,communication field

SMT / DIP PCBA control circuit boards Manufacturer

a) Components sourcing

    Common components are replaced to be High Quality China brand componnets at the condition of permission,

    Decreasing cost for clients is one part of our jobs.

    Genuine components are ordered from your designated supplier or our partner companies including Digikey,Mouser,

    Arrow, Avnet,Future Electronic,Farnell,etc.

b) Type of assembly

    SMT and Thru-hole

c) Assembly capacity

    Stencil size/range  : 736 × 736mm

    Minimum IC pitch : 0.30mm

    Maximum PCB size : 410 × 360mm

    Minimum PCB thickness : 0.35mm

    Minimum chip size : 0201 (0.2 × 0.1)/0603 (0.6 x 0.3mm)

    Maximum BGA size : 74 × 74mm

    BGA ball pitch : 1.00mm (minimum), 3.00mm (maximum)

    BGA ball diameter : 0.40mm (minimum), 1.00mm (maximum)

    QFP lead pitch : 0.38mm (minimum), 2.54mm (maximum)

Frequency of stencil cleaning : 1 time/5 to 10 pieces
