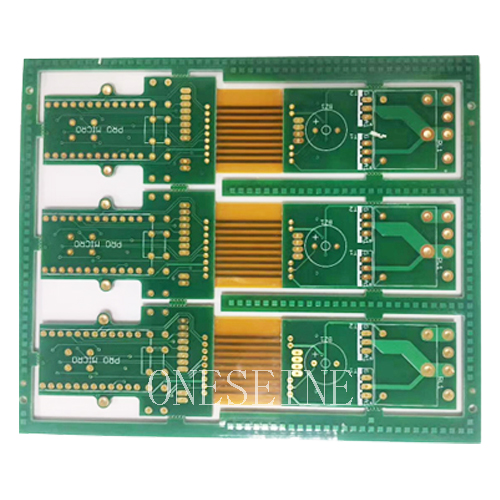

8 Layer Multilayer Rigid-flex PCB Printed Circuit Boards

8 Layer Multilayer Rigid-flex PCB Printed Circuit Boards

Basic information:

Layer:8

Material: polyimide for flexible part,Fr4 for rigid part

Surface finish:HASL for rigid part, immersion gold for flex part

Thickness: 0.2mm

Copper thickness: 0.5OZ

Solder mask:Green for rigid part, coverlay for flex part

Silk screen color: white

Packaging detail: Carton package,Vacumm packing,Anti-static packing

Name: multilayer 8 layer rigid-flexible printed circuit boards manufacturer

Multilayer Rigid-flexible PCB:

hard gold surface finishing mutilayer rigid-flex pcb making

1.FPC Layout,FPC design

2.Make high difficulty PCB(1-38 layers boards)

3.offer all Electric components

4.ISO9001/TS16949/ROHS

5.PCB delivery time:5-10 days

Learn more about our prototype and production flexible and rigid-flex PCB fabrication services. Get low-to-high volume rigid-flex, and flex PCB quantities manufactured with industry leading quick turnaround times for rigid-flex and high density interconnects (HDI) PCBs.

We are your one-stop Chinese PCB supplier for rigid-flex and flex PCBs. We are a high quality quick turn prototype flex and rigid-flex PCB manufacturer.

Advantages of Rigid-Flex PCB
Flex PCB advantages compared to the general P.C.B:
1. Light weight
2. The thin dielectric
3. The short transmission path
4. conducting small aperture
5. The less noise, high reliability
Flex PCB compared to the advantages of hard plates:
1. With flex, the three-dimensional wiring, by changing the shape of space limitations.
2. The high temperature resistance, flame.
3. folding without affecting the signal transmission function.
4. to prevent electrostatic interference.
5. The chemical change and stability, stability, reliable high.
6. conducive related product design, assembly work and reduce errors, and improve the life of the products concerned.
7. Allow applications volume is reduced, significantly reduce the weight, increase functionality and reduce costs.

Multilayer rigid-flex PCB application

High-end Bluetooth headset (for signal transmission distance requirements);

intelligent wear equipment;

robot;

unmanned aerial vehicle;

surface display;

high-end industrial equipment;

aerospace satellite and other fields

With the intelligent devices to the highly integrated, lightweight, small-oriented direction, and the industrial 4.0 on the personalized production of the new requirements. Soft and hard combination board with its excellent physical properties, will be able to shine in the near future.

What is rigid-flexible PCB circuit boards:

Rigid flex PCB board, that is, flexible circuit boards and rigid circuit boards, through the pressure and other processes, according to the relevant process requirements together to form a FPC characteristics and PCB characteristics of the circuit board. In the past, two hard boards were connected by a flexible board and a connector. In order to improve the connection reliability between the hard board and the flexible board, the flexible board can be manufactured directly between the two hard boards in the printed circuit board (PCB) factory, thereby eliminating the follow-up process. Whether the hard board manufacturer or Soft board manufacturers, is now available for the combination of soft and hard board. In the end product for the thin and light under the requirements for the soft board and soft and hard combination of the scope of application will be broad.

High-end smart phone is still functional rigid-flex combination of the main driving force for the development of the market. Due to more functional requirements, such as word processing powerful, send and receive e-mail, digital camera pixels to enhance the mobile phone hard and soft board to increase the application of static and dynamic can be combined with soft and hard board design, the future with digital TV, Micro-projector, map function to strengthen the mobile phone functions, soft and hard board is bound to the whole machine, modular applications.
