Multilayer FPC

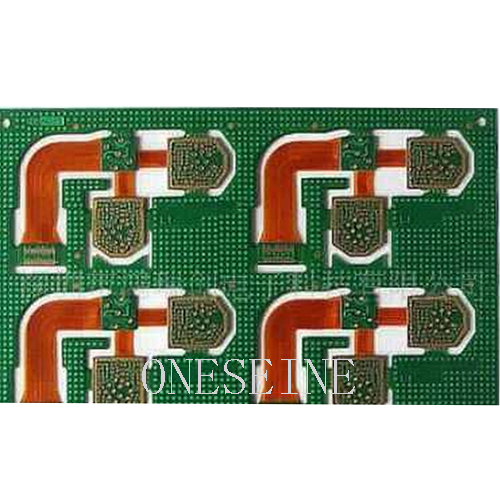

Customized Immersion Gold 6 Layer Rigid-flex PCB From Shenzhen Manufacture

Quick details:

Number of layer:6

Board thickness:1.2mm

Brand: ONESEINE

Sample order:Acceptable

Application: Electronics products

Surface finish:Immersion gold

Item:rigid-flex PCB boards

Our Services

Our Services

We are able to provide you best electronics services We are able to provide you best electronics services.

1) PCB Production

2) Service.(FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 )

2) FPC,PCB Copy Service.

3) PCB Assembly Service. (SMT, BGA, DIP)

4) IC program with HEX file.

5) PCBA Housing assembly serivce.

6) PCBA Final Functional Testing.

7) PCBA Copy Service.

8) Electronic Components Purchasing & BOM List Purchasing Services.

9) PCB SMT Stencil. (Laser cut & Etching)

10) Cable assembly

Why us ?

1) Professional engineer team --help you to check design and do engineering before production

2) Rich expierences in pcb production industry--provide high quality and competitive price pcb.

3) After-sales service--every problem you have will get our professional advice and solution.

4) Constant follow up-- make us have the fast reaction of your requirement.

5) Inspected by the Inspection Institution--ISO,UL,ROHS cerfiticated

Process Capability

1) Bare Printed Circuit Board Process Capability:

1	Layers	Single Sided,2 to 18 Layer
2	Board material type	FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more
3	Compound material lamination	4 to 6 layers
4	Maximum dimension	610 x 1,100mm
5	Dimension tolerance	±0.13mm
6	Board thickness coverage	0.2 to 6.00mm
7	Board thickness tolerance	±10%
8	DK thickness	0.076 to 6.00mm
9	Minimum line width	0.10mm
10	Minimum line space	0.10mm
11	Outer layer copper thickness	8.75 to 175µm
12	Inner layer copper thickness	17.5 to 175µm
13	Drilling hole diameter (mechanical drill)	0.25 to 6.00mm
14	Finished hole diameter (mechanical drill)	0.20 to 6.00mm
15	Hole diameter tolerance (mechanical drill)	0.05mm
16	Hole position tolerance (mechanical drill)	0.075mm
17	Laser drill hole size	0.10mm
18	Board thickness and hole diameter ratio	10:1
19	Solder mask type	Green, Yellow, Black, Purple, Blue, White and Red
20	Minimum solder mask	Ø0.10mm
21	Minimum size of solder mask separation ring	0.05mm
22	Solder mask oil plug hole diameter	0.25 to 0.60mm
23	Impedance control tolerance	±10%
24	Surface finish	Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger
